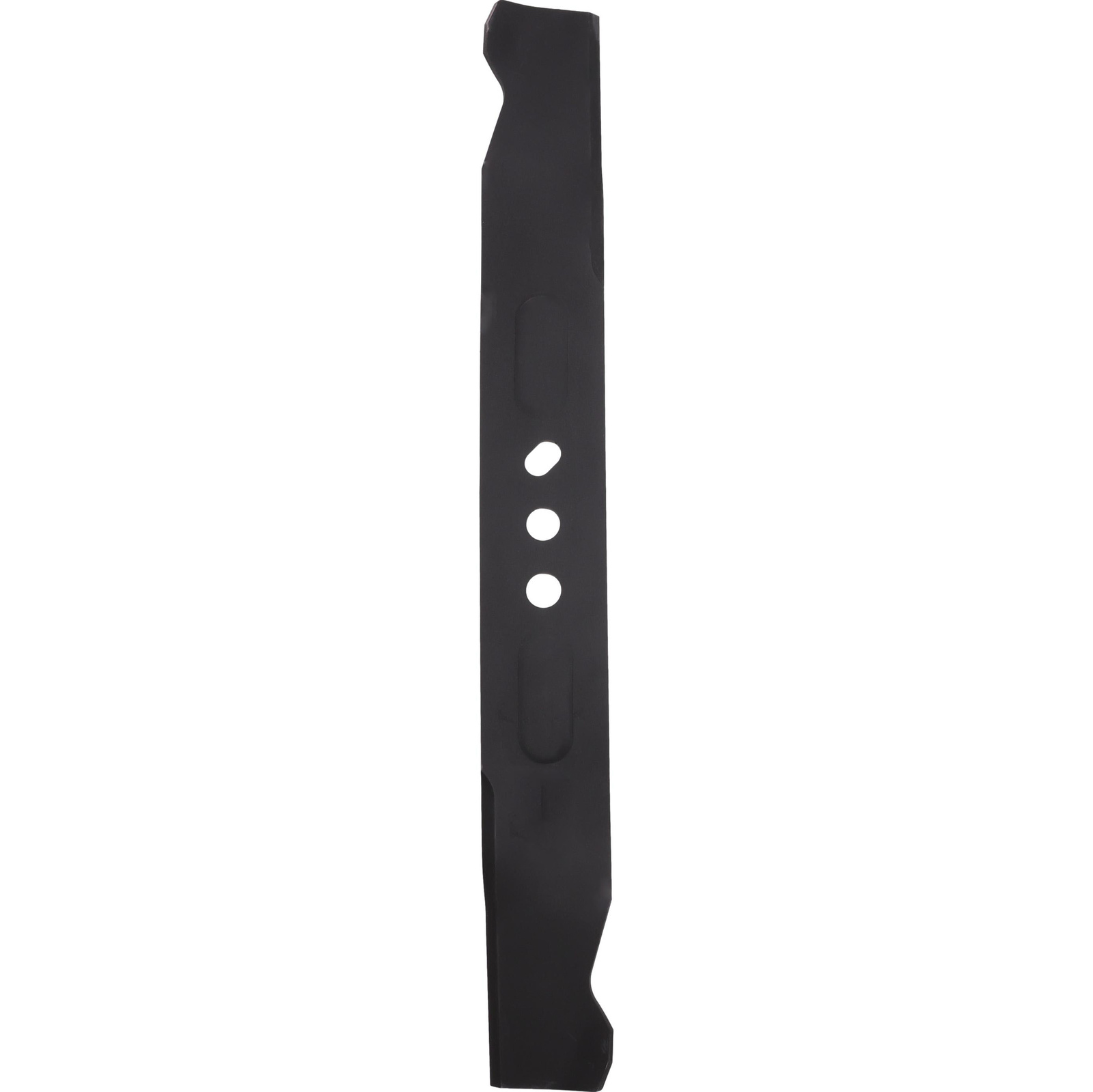

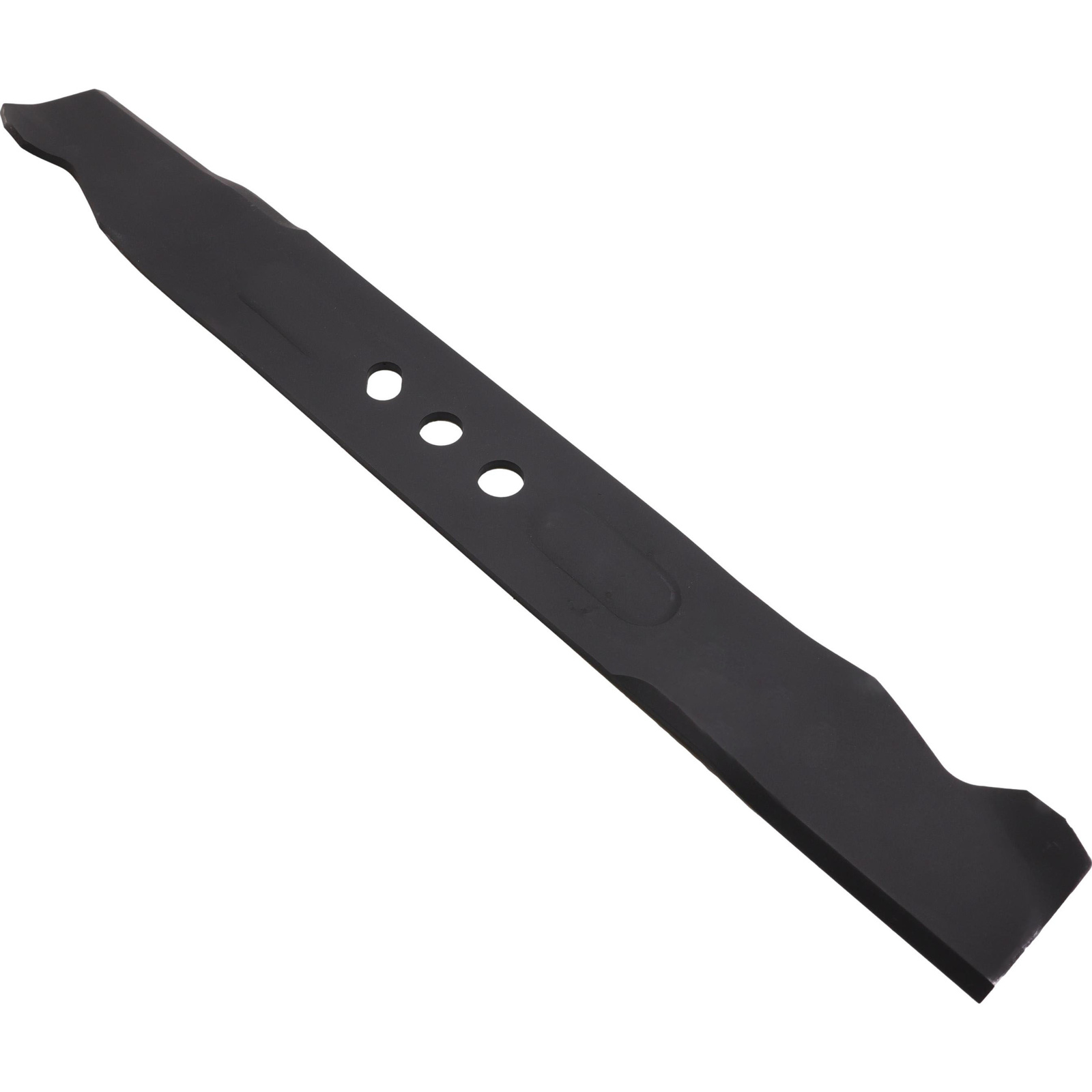

Lawn mower Cutter 51cm NGP W 510 W1 X 510 VH7 M-002-001-B D-002-406-00
- 1 x 51cm (20") knife
Specification:
- Blade length: 510 mm
- Centre hole: 15 mm
- Side holes: 15 mm, 12 x 18 mm
- Distance between side holes: 60 mm (from centre to centre)
- Thickness: 3.5 mm
Suitable for:
- NGP W 510 W1 (W510W1)
- NGP X 510 VH7 (X510VH7)
Replaces:
- D-002-406-00
- M-002-001-B
- D00240600
- M002001B
More information
Länge:
50.2
Zentralbohrung:
15.1
Mittenabstand Außenbohrung:
60
Breite:
57
Dicke:
4
Doppelte ausblenden:
Ja
